High Optical Power Handling Photodiodes to 22 GHz


10Gb/s InGaAs PIN Photodiodes to 20 GHz



Salient Features:

  • High Current Handling (up to 20 mA)
  • Lowest PDL (typical 0.05 dB)
  • Useable spectral wavelength range of 800-1650 nm
  • Low Group Delay
  • Low Harmonic Distortion
  • Small Footprint & High Reliability
  • Bellcore GR-468 Qualified
  • One device for multiple wavelengths reduces operational inventory costs

Applications:

  • Optically Amplified Systems
  • RZ, NRZ, Super FEC Formats to 20 Gb/s
  • High Dynamic Range, Analog RF Links over Fiber
  • Rapid Doppler-Shift LIDAR Measurements Coherent Lightwave Systems
  • Ideal Front-End O/E Converter for Test Instruments

Available Models:

  • DSC30S - High Optical Power Handling Photodiodes to 22 GHz
  • DSC40S - High Optical Power Handling Photodiodes to 16 GHz
  • DSC50S - High Optical Power Handling Photodiodes to 12 GHz

DSC30S 1 dB Compression:
DSC30S 1 dB Compression
DSC40S 10Gb/s Eye Diagram with 0 km Single Mode Fiber:
DSC40S: 10 Gb/s Eye Diagram with 0 km Single Mode Fiber
In: 13 dBm
x-axis: 17 ps/div
Out: 700 mVp-p
w/PRBS: 231-1
y-axis: 140 mV/div
DSC30 Impulse Response:
DSC30 Impulse Response

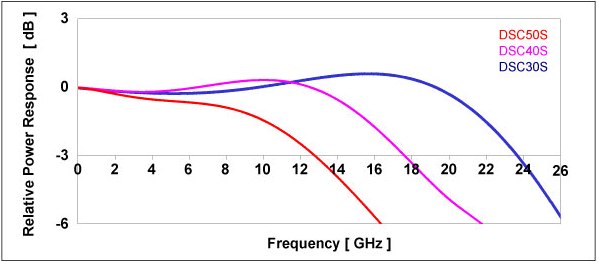

Frequency Response Curves:
DSC30S, DSC40S, DSC50S Frequency Response Curve


DSC30S, DSC40S, DSC50S Lab Buddy

For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy.
