High Speed Uncooled 2.2 micron SWIR InGaAs Photodiodes to 20 GHz

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us

Description:

The 2.2um cutoff, uncooled, InGaAs high speed photodiodes are hermetically sealed, fiber pigtailed, and designed for high optical power applications with minimum bandwidths of 10, 14 and 18 GHz, respectively. The devices are well suited for applications using fiber amplifiers, and are available in either a K-connector package or a miniature surface mount package with CPW (coplanar waveguide) RF output, and utilizes Discovery's high-reliability InGaAs photodiode technology.

High Speed Uncooled 2.2 micron SWIR InGaAs Photodiodes to 20 GHz       DSC2-30S, DSC2-40S, DSC2-50S Lab Buddy.

Fig. 1:DSC2-30S40S50S

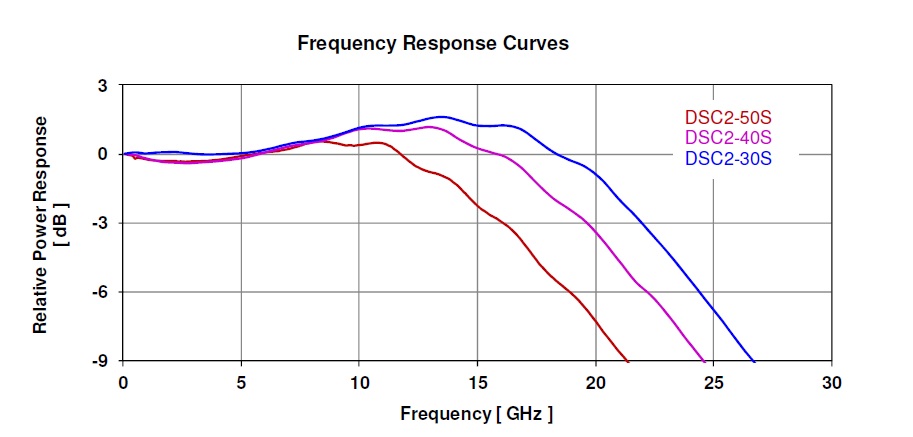

DSC2-50S Frequency Response Curve

Fig. 2: Frequency Response Curve for 30S40S50S

Salient Features:
  • High Current Handling (up to 15 mA)
  • Lowest PDL (typical 0.05 dB)
  • Useable spectral wavelength range 1200 – 2200 nm
  • Low Group Delay
  • K-connector or surface mount package options
  • One device for multiple wavelengths reduces operational and inventory costs
Applications:
  • Fiber Laser Systems at 2.05um
  • High Dynamic Range, Analog RF Links over Fiber
  • Rapid Doppler-Shift LIDAR measurements
  • Coherent Lightwave Systems
  • Ideal Front-End O/E Converter for Test Instruments
  • Environmental Sensing
  • Time Resolved Spectroscopy
  • Free Space Communications

Available Models:

  • DSC2-30S - 2.2 Micron High Optical Power Handling Photodiodes to 22 GHz
  • DSC2-40S - 2.2 Micron High Optical Power Handling Photodiodes to 16 GHz
  • DSC2-50S - 2.2 Micron High Optical Power Handling Photodiodes to 12 GHz
