Wideband RF Amplifier from 30 kHz to 45 GHz

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us

Description:

The DSC-R414 Wideband RF Amplifier from 30 kHz to 45 GHz is a general purpose, small footprint, inverting RF amplifier, with moderate gain. The amplifier is useful for applications such as optical communications and 25G/40G VCSEL drivers.

Wideband RF Amplifier from 30 kHz to 45 GHz

Fig. 1:DSC-R414 Wideband RF Amplifier

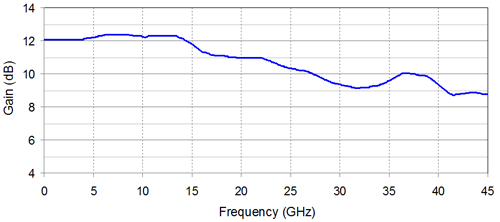

Wideband RF Amplifier from 30 kHz to 45 GHz Frequency Response

Fig. 2: Frequency Response

Salient Features:
  • Easy-to-use RF Amplifier Gain Block
  • Ultra Broadband response
  • Low Group Delay
  • Low Noise
  • V Connectors
  • Powered from a Single Regulated DC supply
Applications:
  • General Purpose Wideband RF Amplifier
  • Ideal for Optical Communications (30 kHz low frequency cutoff)
  • BER and Impulse Measurements
  • 25G/40G VCSEL Driver Amplifier
  • PAM4 Test & Measurement
Available Models:
  • DSC-R414 - Wideband RF Amplifier from 30 kHz to 45 GHz
